Foley Sound Design Deep Dive: Stage Prep, Prop Mechanics & Mixing

Intermediate · ~12 min

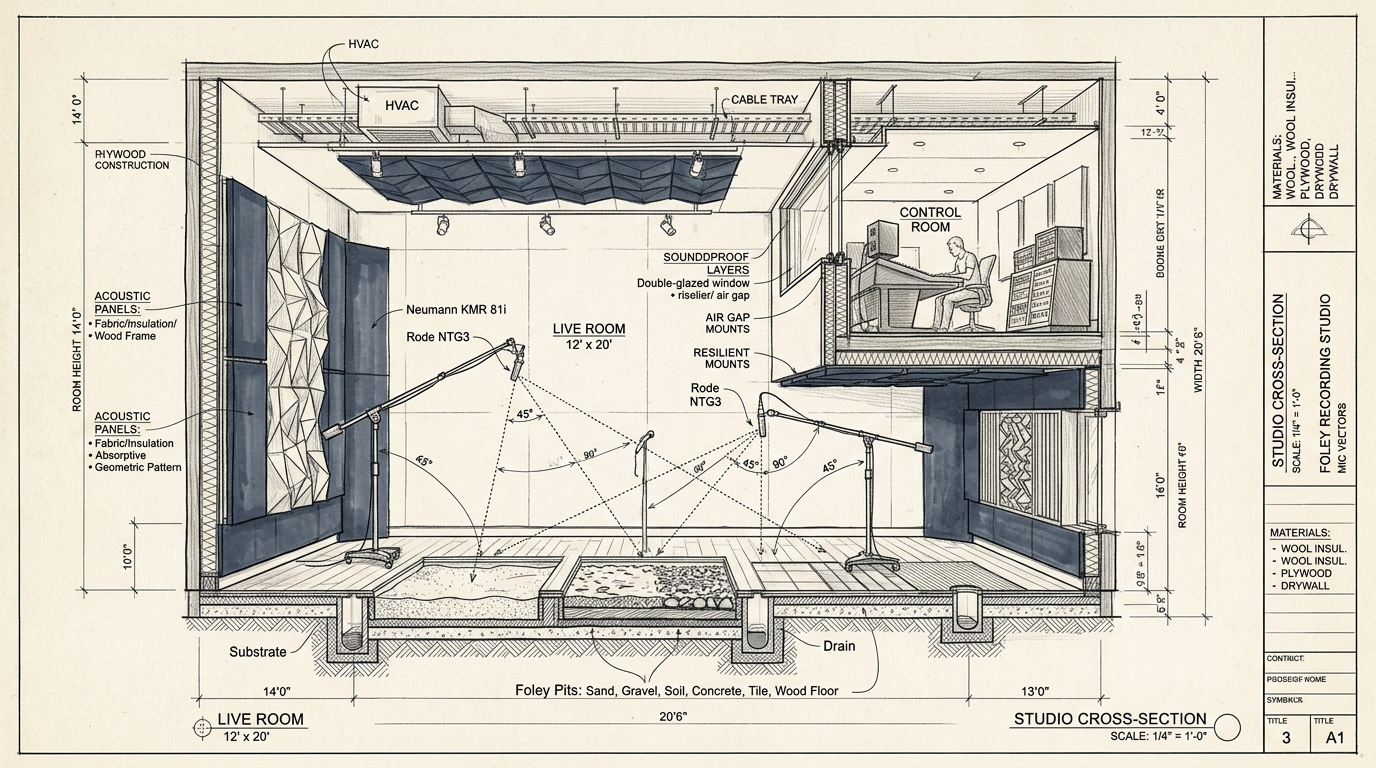

A detailed technical architectural illustration showing Foley studio live room cross-sections, recessed surface pits for gravel and sand, acoustic baffle isolation, and 45-degree shotgun microphone positioning vectors.

Overview

Foley is the physical art of performing, recording, and mixing custom sound effects to match on-screen action in real-time. From character footsteps and clothing passes to intricate prop interactions, high-quality Foley brings realism, depth, and narrative clarity to a film or game soundtrack. This step-by-step deep dive details the entire Foley workflow, from stage preparation to DAW mixing.

Real-World Studio Insights: The Physicality of Foley

Before diving into technical DAW routing, it is vital to understand that Foley is a physical performance craft. Celebrated MPSE Foley artist Alicia Stevenson (Dances with Wolves, The Matrix Reloaded, Cars) illustrates the intense physical dedication required when performing Foley for feature films:

"My toughest job was Dances with Wolves. Dan O'Connell was my partner on that. We had the silly idea to save all the horse, buffalo and wolf footsteps until the end, after completing everything else. We were bent over in the dirt pit for days on end, pounding the dirt, doing layers of tracks of stampeding buffalo, horses running at full speed, and lots of animal body falls. It was intensely dirty and we had to wear particle masks all day. To get some variety in our sound, we duct-taped stones to our hands. It was thoroughly and utterly exhausting. In the end, Dances with Wolves won the Academy Award for Best Sound..."

— Alicia Stevenson, MPSE Foley Artist (CineMontage / Editors Guild)

Step-by-Step Foley Production Workflow

Spotting and Cueing the Scene

Import your locked picture edit into your DAW (REAPER, Pro Tools). Create three primary Foley sub-tracks:

Footsteps (Pats): Cue every character on screen. Define footwear type (heels, boots, sneakers, bare feet) and surface terrain (gravel, hardwood, carpet, metal).
Cloth (Passes): Cue body movement, arm movements, jacket rustles, and furniture contact.
Props (Moves / Specifics): Cue explicit object interactions (setting down a glass, opening a bag, handling paper, brandishing weapons).

Surface Pit & Prop Selection

Prepare your surface pits or portable surface boxes:

Gravel / Dirt: Use crushed granite or pea gravel for crisp outdoor steps. For heavy animal or stampeding passes, duct-tape stones or heavy leather to hands to pound the pit with natural weight.
Hardwood & Marble: Keep dry, un-waxed wooden boards and polished stone slabs available for indoor footwear.
Water Pits: Use shallow plastic tubs with varying water depths for splashes and puddles.

Microphone Placement & Gain Staging

Foley requires a dry, noise-free recording chain with natural acoustic depth:

Mic Selection: A shotgun microphone (Sennheiser MKH416, Neumann KMR81i) or hypercardioid condenser (Sennheiser MKH50, AKG SE300B) matches the timbre of boom microphones used during production filming.
Distance: Position the microphone 2 to 4 feet away from the performance pit, pointed at a 45-degree angle. Placing the mic too close (<1 foot) causes unnatural bass proximity effect. Placing it too far (>6 feet) introduces unwanted room reverberation.

Performing Footsteps & Prop Mechanics

When performing footsteps, watch the actor's hips and shoulders rather than just their feet to anticipate heel-toe weight transfers:

Heel-Toe Weight Roll: Execute a distinct heel contact followed immediately by a firm toe roll for realistic human gait.
Cloth Passes: Hold a leather jacket, heavy denim jeans, or a nylon windbreaker near the microphone, performing rhythmic arm sweeps in sync with on-screen movement.

DAW Layering, EQ, & Reverb Matching

The goal of mixing Foley is making it sound like it was recorded on set during principal photography:

Transient Alignment: Micro-align footstep spikes to the exact frame where the actor's heel contacts the ground.
EQ Filtering: High-pass filter Foley tracks at 80Hz to 100Hz to eliminate low-end rumble. Gently roll off extreme high frequencies (>12kHz) to blend Foley beneath production dialogue.
Impulse Response (IR) Reverb: Route Foley tracks into a convolution reverb plugin loaded with an IR matching the scene's location (e.g., small tiled bathroom, wooden hallway, open field).

Practitioner Foley Checklist

Calibrate your DAW monitor gain so you can hear subtle cloth passes without clipping your preamp inputs.
Keep a dedicated prop bin containing vintage keys, leather coats, nylon jackets, metal chains, and varied paper stocks.
Micro-nudge Foley tracks by 1 to 2 frames if the footstep audio feels slightly ahead or behind the visual heel contact.
High-pass filter all Foley tracks at 80Hz to keep sub-bass frequencies clean for music and sound design impacts.
