Edwin Armstrong: Three Foundational Circuits and a Ruinous Patent War

By Infinite Creation · Profile

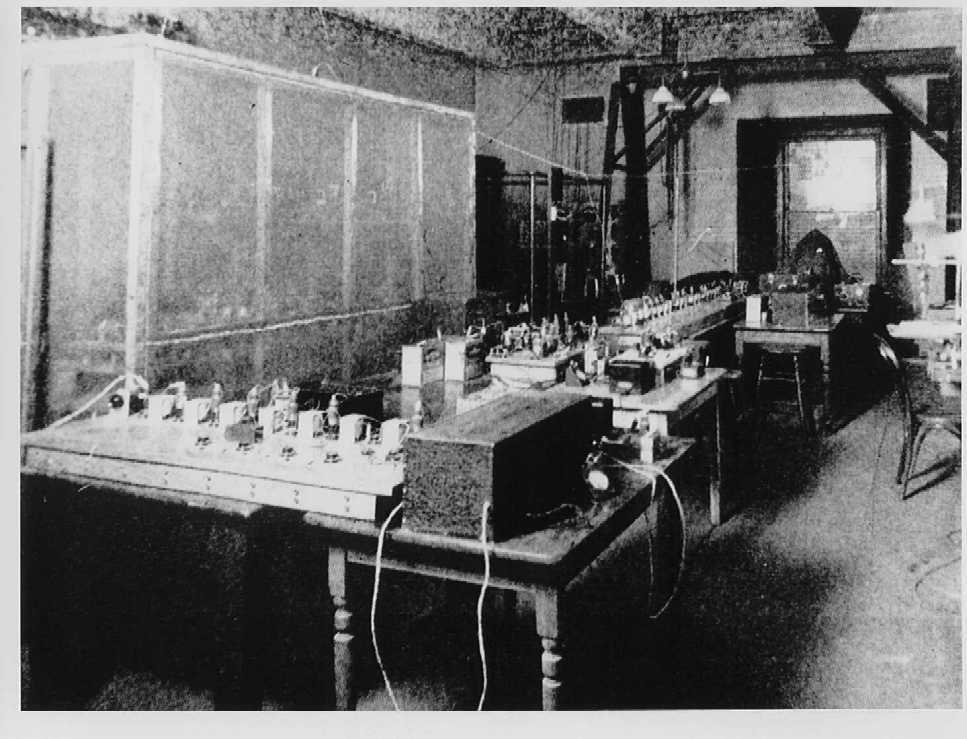

Historical photograph of Edwin Howard Armstrong.

At a Glance

Edwin Howard Armstrong (1890-1954) invented regeneration, the superheterodyne receiver and wideband frequency modulation: three of the most important circuits in radio. He spent decades in patent litigation, principally against de Forest and RCA, and took his own life in 1954. His widow subsequently won the outstanding suits.

Lived: 1890-1954, United States
Anchor year: 1933, wideband FM patents
Strand: canon

Career

The problem as it stood

Early valve receivers were insensitive, hard to tune across bands, and. For AM, helpless against static, since atmospheric noise is itself amplitude variation and therefore indistinguishable from the signal.

What he actually did

Regeneration (1912): feed part of the output back to the input, hugely increasing gain and selectivity. The superheterodyne (1918): mix the incoming signal with a local oscillator to a fixed intermediate frequency, so the difficult filtering and amplification happen at one frequency regardless of station. Wideband FM (1933): encode the audio as frequency variation rather than amplitude.

How it worked

FM is the deepest of the three. Static is amplitude noise, so a receiver that ignores amplitude entirely and reads only frequency ignores static too. Armstrong's insight, against the prevailing theory, was that using a wide band rather than a narrow one improves the noise performance dramatically: the theoretical establishment had concluded FM was useless because it had only analysed the narrowband case.

What it made possible

The superheterodyne is in essentially every radio receiver made since, including television sets and mobile phones. FM gave broadcasting genuinely high-fidelity, static-free sound, and the FM band remains the home of music radio.

What happened to him

RCA, having backed television, resisted FM. The FCC moved the FM band in 1945, obsoleting existing equipment. Litigation ground on for years and exhausted his finances and health. In 1954 he took his own life. His widow pursued and won the remaining suits.

Where the credit landed

Armstrong and de Forest litigated over regeneration for two decades, and in 1934 the US Supreme Court found for de Forest, by applying a clear-and-convincing burden of proof for invalidity, not by finding that de Forest invented regeneration. The engineering community largely sided with Armstrong. The Institute of Radio Engineers declined to rescind the medal it had given him. Court rulings are legal outcomes, never historical findings.

Known For

FM rejects static because static is amplitude noise and FM ignores amplitude.
The superheterodyne is in almost every receiver ever made.
The 1934 ruling turned on burden of proof, not on who invented regeneration.

Knowledge Base

What You'll Learn

Three inventions, any one of which would justify a place in this corpus.

Why wideband FM works when the theory said it would not

Contemporary analysis concluded FM offered no advantage, because it examined narrowband FM where that is broadly true. Armstrong showed that deliberately using far more bandwidth than the audio requires buys a large improvement in signal-to-noise, trading spectrum for quality. It is an early and clean example of a principle information theory would later formalise: bandwidth and noise immunity are exchangeable.

Where This Fits

Armstrong's circuits sit in the transmission and reception links covered in A History of Broadcast Technology, along with his patent fight.

FAQ

Q: What is a superheterodyne receiver?
A: One that mixes the incoming signal with a local oscillator to produce a fixed intermediate frequency, so the amplification and filtering always happen at the same frequency regardless of which station is tuned. It is used in almost every radio receiver made since.

Q: Why is FM less affected by static than AM?
A: Atmospheric noise appears as amplitude variation. An FM receiver reads frequency variation and deliberately discards amplitude information, so most static is simply not decoded.

Sources

The superheterodyne patent was checked against the record. Checked 20 August 2026.

US Patent 1,342,885, Method of Receiving High-Frequency Oscillations. Armstrong's superheterodyne patent, filed 8 February 1919 and granted 8 June 1920. Mixing an incoming signal down to a fixed intermediate frequency is still how almost every radio receiver works.
